LFP NCM LTO Battery Management System , 270S 864V 250A high voltage BMS(HV BMS)

Brand Name : GCE

Model Number : RBMS07S20-250A864V

Certification : CE UL

Place of Origin : china

MOQ : 2

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 10000+pcs+1 month

Delivery Time : 15-30days

Packaging Details : Corrugated Carton,45X35X30 cm

Material : iron

color : black

Communication : CAN, RS485

OEM/ODM : Acceptable

Warranty : 3 years

Application : Solar, Wind, UPS, EV Car,Home Appliances,Boats,Energy storage system

Product name : Battery Management System

Dimension : (440*178*600）mm

Contact Now

New Lifepo4 BMS 270S 864V 250A LFP NCM LTO Batteries black HV BMS for ESS UPS BMS System For Battery Operation Voltage

--Specification--

item	high voltage BMS(HV BMS)
Place of Origin	China
	Hunan
Application	Solar Energy Storage Systems
Brand Name	GCE
Model Number	18
Model Number:	RBMS07S2-3-250A864V
Product name:	4U BMS
Battery Type:	LFP/NMC/LTO
communication:	Rs485/CAN/LAN/dry contact
Voltage:	864V
Current:	-250~250A
Application:	BESS/UPS
module strings:	15S*18pcs
Power	24VDC(18~28V)
Power consumption	≤20W
Communication with monitoring software/EMS	Ethernet
High voltage power module	Support DC start (optional)
Way out	Front
Center Tap	Support(Optional)
Net weight	23kg
Size(WHD)mm	4U (440178600)

LFP NCM LTO Battery Management System , 270S 864V 250A high voltage BMS(HV BMS)

864V250Amp

Communication protocol:
Rs485, CAN, LAN, Modbus

* 4U standard 19inch case

* Efficient, stable and reliable

* size:W482*H180*D500mm

LFP NCM LTO Battery Management System , 270S 864V 250A high voltage BMS(HV BMS)

--Product Feature--

1. Advanced Battery Management System --- The highly integrated battery management system enables seamless monitoring.

2. perfect self-test and operational status detection, with HMI display, system operation information at a glance.

3. perfect and reliable system control and protection strategies to fully protect the battery safety, extend the life of the battery escort.

4. modular design, configurable, scalable --- flexible combination of multiple energy storage unit can be expanded to a larger energy storage system, the maximum can support 272 (lead-carbon battery 400) battery series.

5. rich communication interface --- multiple RS485, CAN, Ethernet, dry contact input and output interfaces, support for most of the market with PCS, monitoring server communication.

6. Flexible communication interface protocol --- The company comes with the company's communication protocol, but also according to customer needs to adapt to different manufacturers PCS.

7. capacity is large --- Built-in large-capacity memory chips can store a large number of key operational data, but also can install an SD card for offline access.

8. PCS has a protocol control function, the choice of circuit breaker version .

9. automatic circulation control and automatic parallel machine off-line control, can be easily parallel battery. (Model suffix selection D).

Product Tags:

LTO Battery Management System

864V high voltage BMS(HV BMS)

250A Battery Management System

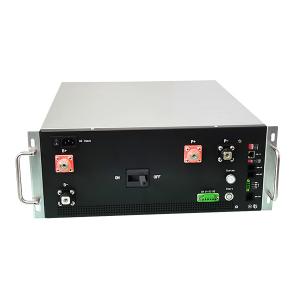

LFP NCM LTO Battery Management System , 270S 864V 250A high voltage BMS(HV BMS) Images
