GCE Relay HV UPS Lifepo4 Bms Battery Management System 336V 125A BMS for High Voltage Lithium Battery Solar ESS Battery
High Voltage Master BMS:
- Maintenance free. Modular design for easy installation and capacity expansion.
- Smart BMS with multiple protection and communication functions.
- Wide working temperature range and high reliability.
- Multiple battery units can be connected in parallel, suitable for high-energy storage applications.
- Compatible with various charge controllers and inverters.
Sample Drawings Of Standard Products:
Specification:
| Product Name | BMS(Battery Management System) |
| Model no. | RBMS07-S23-125A336V |
| protecting method | MCCB+Contactor |
| Rated Current range | -250A~250A(Max. 500A) |
| Voltage Range | 96V-1000V |
| Current Sampling Accuracy | 1.0%FSR |
| Communication interface with PCS | RS485/CAN |
| Communication interface with BMU | CAN |
| Communication interface with SBMS | RS485/CAN |
| Communication with monitoring software/EMS | Ethernet |
| Support IAP upgrade | Yes |
| Support HMI display and parameter | No(Optional plugin) |
| Insulation detection | Yes(Optional) |
| High voltage power module | Support DC start (optional) |
| Dry contact output (normally open) | No |
| Maximum qty of BMUs | 20 |
| Power | 24VDC(18~28V) |
| Power consumption | ≤20W |
| Size(W*H*D)mm | 3U (482*132*500) |
| Way out | Front |
| Tap center | Support(Optional) |
| Net weight | 23 kgs |
One complete set of HV 105S336V 125A BMS solutions includes:
1set Master BMS, Model#: RBMS07-S23-125A336V
7sets 15S Slave BMU Model#: BMU07-15S8T48F
7sets 15S Wire Harness, including voltage&temperature sampling wires,
BMU communication wires, Fan power wire.
Product Features:
The communication interface protocol is flexible.--the factory comes with the company's communication protocol,
and it can also be adapted to the PCS of different manufacturers according to customer needs.
The built-in large-capacity memory chip can store a large amount of key operating data and an SD card can be
added to realize battery historical data storage.
Automatic circulation control and automatic parallel/offline control can easily realize the parallel connection of battery packs.
Basic Functions:
Battery charge & discharge management: Available
Battery temperature management: Available
IAP Upgrade: Available
System protection parameter setting: Available
Short circuit protection: Available(6KA 20ms)
Pre-charge function: Available
Parallel circulation: control Available
Event record: Available(5000)
DC start: Available(Battery powered, Mains supply is only for the signal to start on and off the BMS)
Dry contact: Maximum 2 dry contact outputs
Power Consumption: ≤15W
Withstand voltage rating: 2800VDC ＜1mA 1min
Safety certification: Comply with CE
certification standards: Operating Temperature -20℃~60℃
Installation method: Suitable for standard 19-inch cabinet installation
Incoming and outgoing line mode: Front side in and front side out
Operating ambient humidity: 5%~75%RH

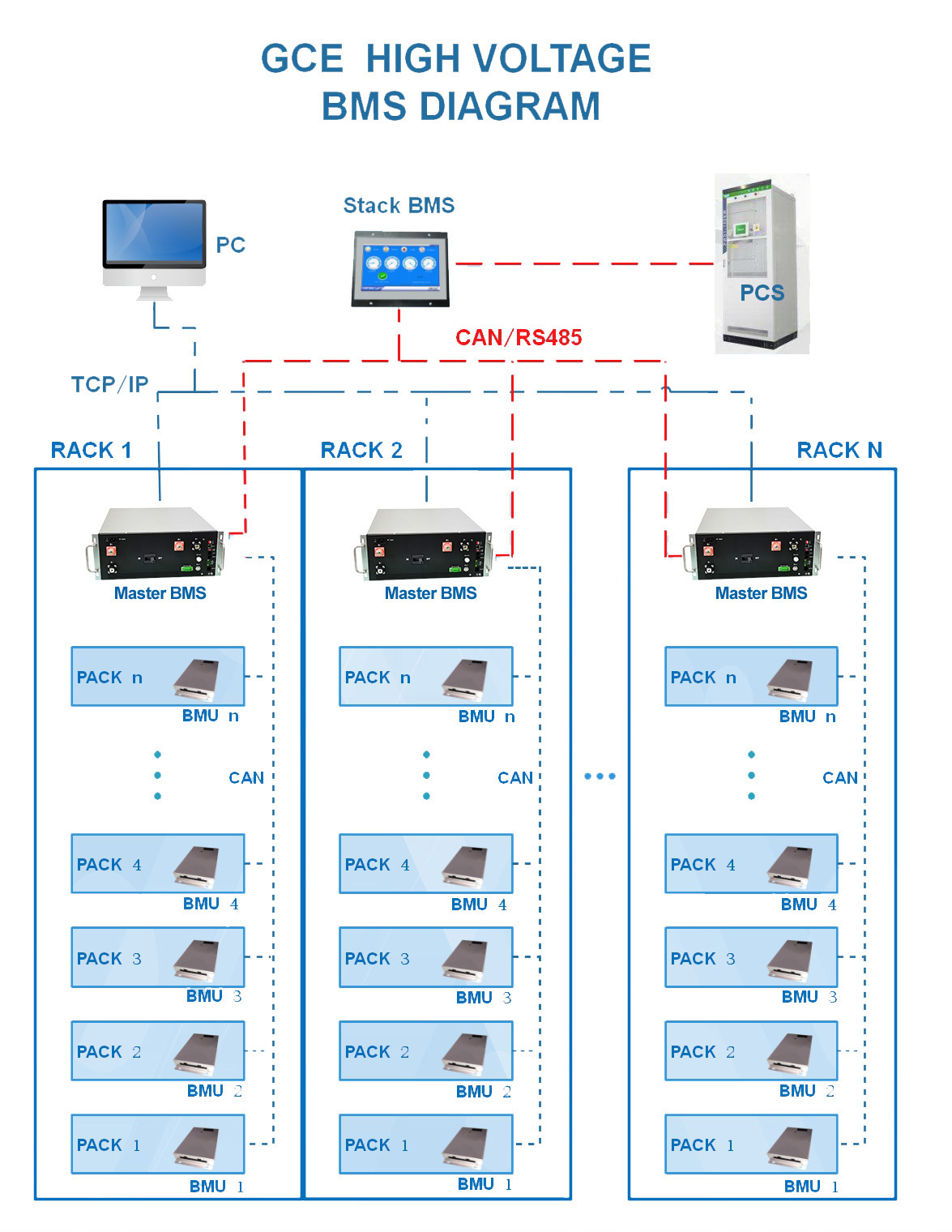

BMS SYSTEM STRUCTURE:
APPLICATIONS:
Application:
1. Battery Energy Storage System(BESS).
2. Island off-grid energy storage.
3. Data Center/ Portable Power Station /Telecom Base Station battery.
4. Grid frequency modulation energy storage.
5. Track power/traction Solar PV plants.
6. LFP UPS power supply
Get More You Want:
Linkage for downloading specifications for Master BMS and Slave BMU:
GCE_RBMS specification--EN--V1.0.pdf
GCE 12-16S BMU-specification-UL-V1.0.pdf
Linkage for downloading of BMS demand information collection form:
high voltage BMS info collection form EN2021-04.do...
